Here is an uncomfortable truth about heat presses: the number on the display is a reading from a single sensor buried somewhere in the heat platen. It is not a measurement of the surface your transfer actually touches, and on many machines the two are meaningfully different.
If you have ever followed your supplier’s settings exactly and still had transfers fail, a miscalibrated press is one of the first things worth ruling out. Here is how to check it properly.
Why the Display Lies
A heat press controller reads temperature at the sensor, then cycles the heating element on and off to hold that number. The surface of the platen, especially near the edges where heat escapes fastest, can sit well below the center. Add an aging heating element, a sensor that has drifted over years of thermal cycling, or a warped platen, and the gap widens.
It is common to find a press running fifteen to twenty-five degrees away from its display, and it is not unusual for the corners to be twenty degrees cooler than the center of the same platen. Neither shows up as an error message. It shows up as transfers that peel on one side of the shirt.
Symptoms of a Press That Needs Testing
Watch for a pattern rather than a one-off failure. Transfers that consistently fail in the same area of the design point to a platen hot or cold spot. Prints that need noticeably longer than the recommended time to bond suggest the press runs cool. Scorching or dye migration at settings that should be safe suggests it runs hot. Results that changed without you changing anything suggest drift.
Method One: Temperature Indicator Strips
Thermal test strips are the most practical option for most shops. They are small paper strips printed with heat-sensitive marks that permanently change color at known temperatures. You place them directly on the platen surface, close the press briefly, and read which marks changed.
The advantage is that they measure the actual contact surface at the actual pressure, which is exactly what your transfer experiences. They are inexpensive enough to use across a five-point grid without thinking about cost.
Method Two: An Infrared Thermometer
An infrared thermometer is fast and reusable, and it is the tool most shops already own. It is also the easiest to misuse. Shiny metal platens reflect infrared and will read far cooler than they actually are, sometimes by fifty degrees or more.
The workaround is to place a small piece of matte masking tape on the platen, let it come to temperature, and aim at the tape rather than bare metal. Hold the thermometer perpendicular and close. Used this way it gives a reasonable relative picture of hot and cold zones, even if the absolute number is imperfect.
Method Three: A Dedicated Heat Press Probe
A thermocouple probe designed for heat presses is the most accurate option. It sits between the platens under real pressure and reads the temperature at the contact surface. If you run production volume, this is worth owning. For a hobby or side-business press, indicator strips do the job for far less.

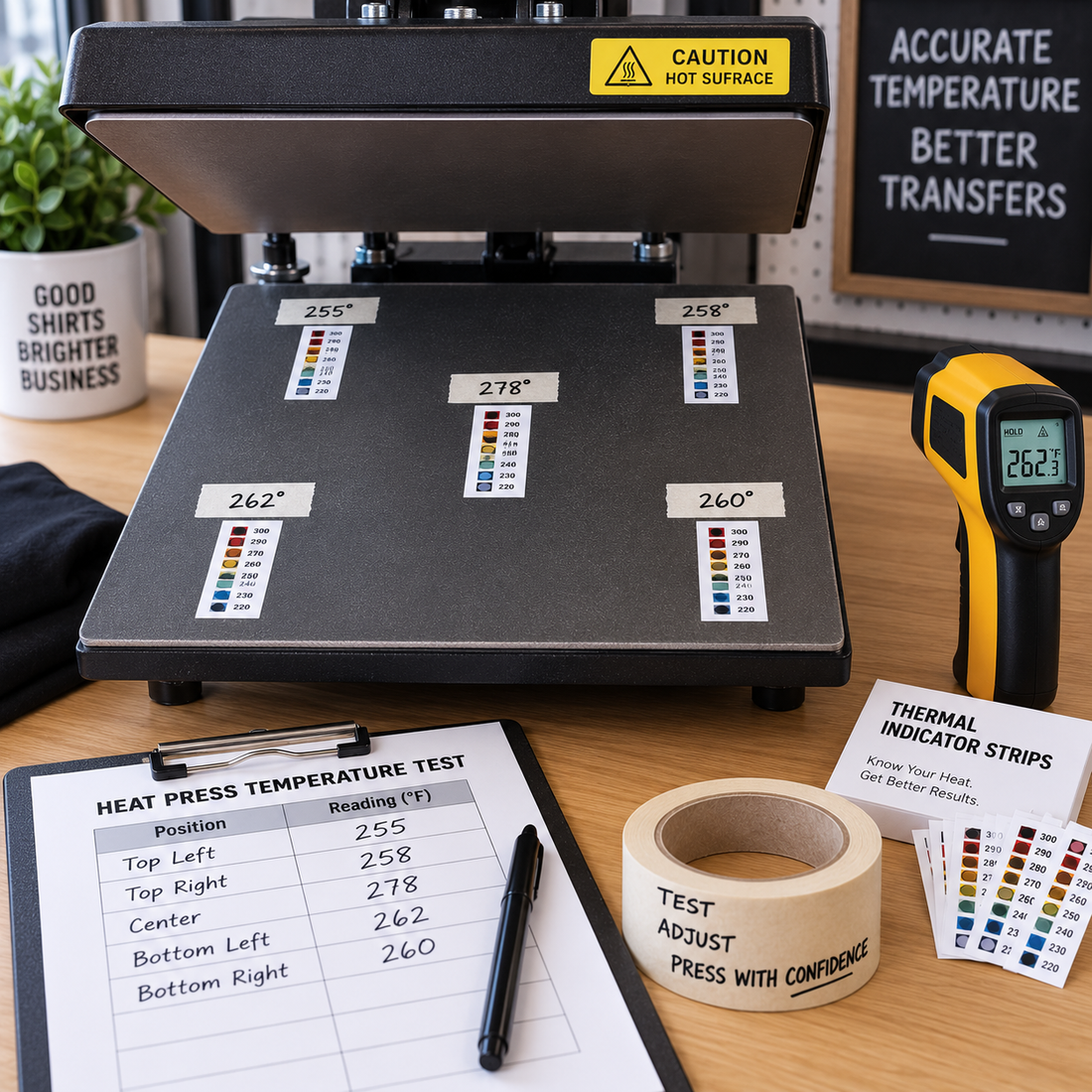

Run a Five-Point Grid Test
Whatever tool you use, do not measure only the center. Set your press to a typical working temperature, let it fully stabilize for at least fifteen minutes, then measure at five points: each of the four corners and the center.
Write the readings down in the same physical layout as the platen. A pattern will usually be obvious. Uniformly low or high readings mean the sensor has drifted. One cold corner means uneven heating or a warped platen. A cool perimeter with a hot center is common and usually acceptable if the spread is small.
How Much Variance Is Acceptable
As a working rule, a spread of about ten degrees across the platen is normal and workable. Fifteen to twenty degrees is worth compensating for by keeping designs toward the center. More than that, and you will struggle to get consistent results no matter how carefully you follow settings.
What to Do With What You Find
If the whole platen reads uniformly off, the simple fix is an offset. If your press reads twenty degrees low everywhere, set the dial twenty degrees higher and write the offset on a label stuck to the machine so you do not forget it six months from now. Many controllers also have a calibration setting in their menu that lets you correct this properly.
If you have a localized cold spot, keep your designs inside the reliable zone and treat the platen as smaller than it really is. Check that nothing is obstructing the heating element and that mounting bolts are evenly tightened, since uneven mounting can warp a platen slightly.
If readings are wildly inconsistent or the press cannot hold a stable number, you are looking at a failing element, sensor, or controller. At that point, repair or replacement is the honest answer, and our guide to choosing a heat press for DTF transfers is a useful starting point.
While You Are At It, Check Pressure and Time
Temperature is only one third of the equation. Test pressure with the paper method: slide a strip of paper under the closed platen at each corner and compare the resistance when you pull. Noticeably easier at one corner means the platen is not parallel.
Time is worth verifying too. Run your press timer against a phone stopwatch. Timers on inexpensive presses can drift, and three seconds missing from a twelve second press is a quarter of your dwell.
How Often to Test
Test when you buy a press, whether it is new or used. Test again every few months under normal use, or monthly if you run daily production. Always test after moving the machine, after any repair, and immediately if your failure rate changes without an obvious cause. Log the results with the date so you can see drift developing rather than discovering it through ruined garments.
Most mystery failures are not mysteries once you measure. A press that reads accurately, heats evenly, closes level, and times correctly makes every published settings recommendation actually usable. Spend twenty minutes and a few dollars on strips, and you remove the biggest unknown in your process. Then order your DTF transfers from Southeast Prints and press with confidence.
