Print Placement and Size Chart: Adult, Youth, Toddler, Left Chest, and Pocket

Ask any custom apparel shop where customer complaints actually come from and the answer is rarely print quality. It is placement. A design that sits two inches too low, a left chest hit that drifts toward the armpit, or a youth shirt printed with an adult-sized graphic will generate a complaint even when the transfer itself is flawless.

Placement is also the easiest part of the process to standardize. Here is a working chart and the measuring method behind it.

Measure Down From the Collar Seam, Not the Shoulder

This single habit fixes most placement inconsistency. Shoulder seams sit differently across brands, cuts, and sizes, so measuring from them produces different results on every garment. The collar seam is a fixed, visible reference on every shirt.

Lay the garment flat, find the bottom of the collar seam at the center back of the neck, and measure straight down from there. Every number in the chart below is measured that way, from the collar seam to the top edge of the design.

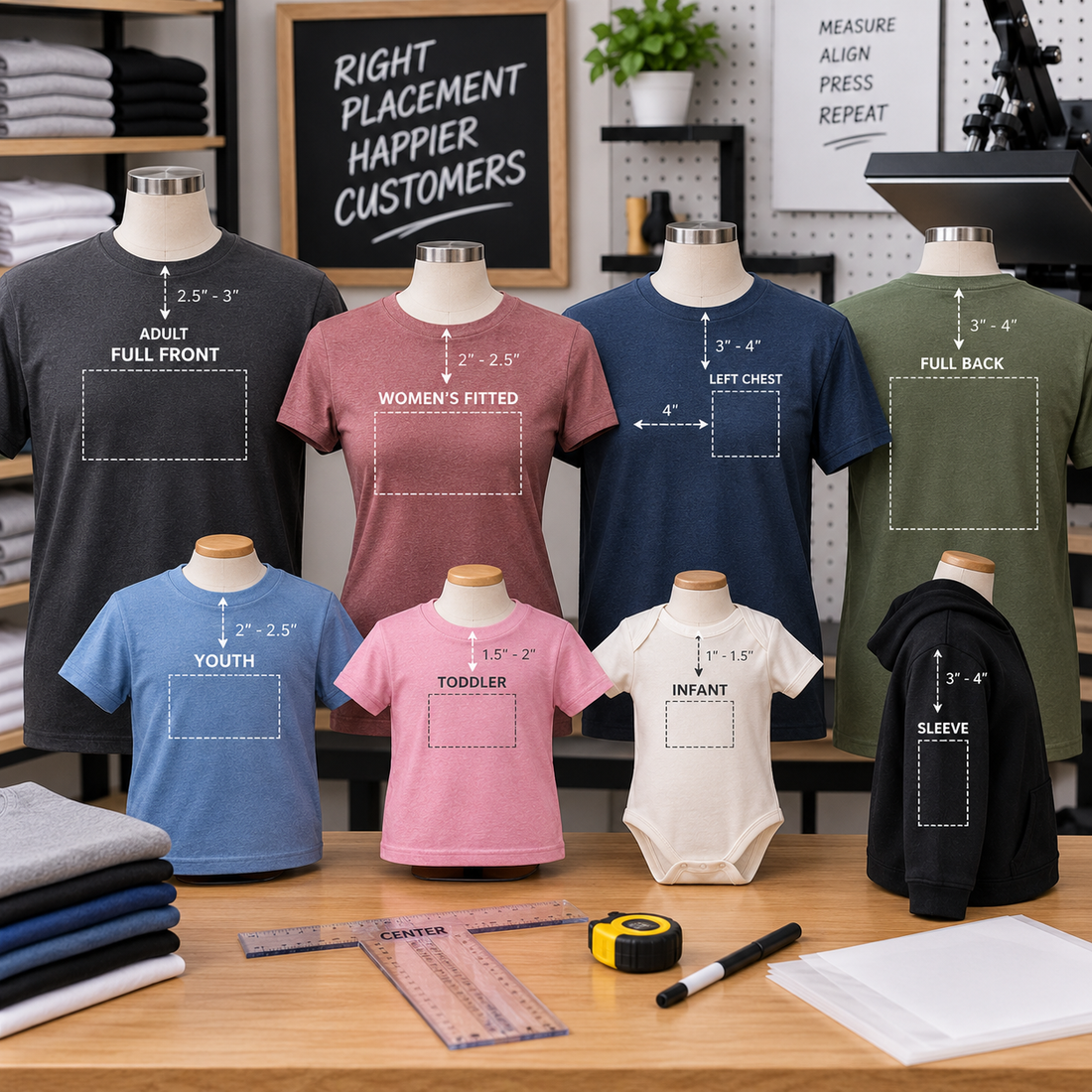

Print Placement and Size Chart

Placement	Design width	Distance below collar seam
Adult full front (S–XL)	11–12 in	2.5–3 in
Adult full front (2XL and up)	12–14 in	3–3.5 in
Women’s fitted full front	9–10 in	2–2.5 in
Youth (S–L)	7–9 in	2–2.5 in
Toddler (2T–5T)	5–6 in	1.5–2 in
Infant bodysuit	4–5 in	1–1.5 in
Left chest	3–4 in	3–4 in, centered about 4 in left of center
Pocket area print	3.5–4 in	Align with where a real pocket would sit
Full back	11–14 in	3–4 in
Upper back yoke	10–12 in	1.5–2 in
Sleeve	2.5–3.5 in	3–4 in below shoulder seam

Treat these as a house standard rather than a law. Different design shapes read differently, and a tall vertical graphic often wants to sit slightly higher than a wide horizontal one.

Getting the Horizontal Center Right

Vertical placement gets all the attention, but off-center designs are just as noticeable and more distracting. The fastest reliable method is the fold. Fold the garment in half lengthwise, press a light crease down the center with your hand, and unfold. That crease is your centerline. Fold your transfer in half the same way and match the two creases.

For left chest prints, remember the design is centered over the wearer’s left chest, which means it appears on the right side as you look at the shirt laid out in front of you. Getting this backwards is one of the most common and most expensive mistakes in custom apparel.

Tools Worth Owning

A clear alignment ruler with a T-shaped head that hooks over the collar seam turns placement into a two-second operation. A simple centering ruler and a laser alignment tool both work well too. Any of them beat eyeballing, and all of them pay for themselves the first time you avoid a reprint. Our guide to aligning DTF transfers perfectly every time covers the tools in more detail.

Should You Scale the Design Across a Size Run?

This comes up on every team and event order that spans youth through adult sizes, and there is no single right answer.

Scaling every size proportionally looks best on each individual garment, but it costs more because you need multiple sizes of the same artwork on your gang sheet. Using one adult size and one youth size covers most of the range and is what most shops do in practice. Using a single size for everything is the cheapest option and looks wrong on the extremes, with a graphic swimming on a 2T and looking undersized on a 3XL.

A practical compromise for a mixed order is three versions: infant and toddler, youth, and adult. That covers the full range without multiplying your artwork costs. Because DTF lets you nest different sizes of the same design on one sheet, this costs far less than it would with other decoration methods. Our gang sheet builder makes it easy to lay out several sizes at once, and reusing leftover sheet space is where the small sizes often ride along for free.

Adjustments for Women’s and Fitted Cuts

Fitted and women’s cut tees have a narrower body and a higher, often wider neckline. Use a narrower design width, sit the design slightly higher, and be conservative with anything very wide, since a graphic that runs to the side seams on a fitted shirt will distort as the garment curves.

Placement on Kids and Infant Garments

Small garments are unforgiving because the design occupies a much larger share of the available area. Keep prints well clear of side seams and snap plackets, and remember that infant bodysuits have very little flat real estate between the collar and the leg openings. Our guide to custom baby and toddler clothing covers the additional considerations for these blanks.

Common Placement Mistakes

Printing too low is the most frequent error by a wide margin, because a design that looks correct on a flat table sits lower once the shirt is on a body. When in doubt, go slightly higher than feels right.

Other regular offenders: forgetting that the collar seam moves relative to the shoulder on larger sizes, printing left chest on the wrong side, running a design so wide it crosses side seams, and using the same placement on a tank top as a crew tee, where the narrower shoulders demand a narrower graphic.

Check Text Legibility at Final Size

A size chart handles the graphic, but text has its own limits. Small type that looks fine at full resolution on a monitor can become unreadable once it is printed at three inches wide on a textured fabric. Our guide to the best fonts and text sizes for readable DTF transfers gives usable minimums.

Build a Placement Board

If you press regularly, take one blank of each common size, mark the standard placements directly on it with a fabric marker, and hang it near your press. New helpers get consistent results immediately, and you stop re-measuring the same thing every day.

Consistent placement is what makes a batch of shirts look professionally produced rather than homemade. Measure from the collar seam, use the chart as a house standard, center with the fold method, and go slightly higher than instinct suggests. Ready to lay out your artwork? Order your DTF transfers from Southeast Prints.
